01
Background
World’s No.1 output
China is both the world's largest producer and consumer of mining resources, with the mining industry accounting for 17% of global production value.
Personal experience
One colleague of my father was killed when he was run over in the blind zone of a forklift truck while working underground.
02
Inspiration
10
15
4
3
3
3
2
2
2
2
2
2
1
4
1
From 2014 to 2024, a total of 56 mining traffic accidents occurred, resulting in 91 miners dead and more than 33 miners injured.
29 cases
78%
11%
11%
Traffic accidents
Misoperation
accidents
Others
Accidents are mainly caused by blind spot and misjudgment of vehicles motion state.
03
Research
Due to the typically large size of mining vehicles and the narrowness of mine shafts, significant blind spots are created, cause huge safety risks.
Large blind spots
High temperature underground
Contrary to what one might imagine, the underground environment is extremely hot, causing many miners to work shirtless. The deeper they go, the higher the temperature, reaching up to40°C.
Obvious Tyndall effect
There is abundant dust underground and the environment is relatively dark, leading to a noticeable Tyndall effect.
Low safety coefficient
The safety coefficient of underground mine is low, there is no active safety system, people and vehicles can not get effective communication and make timely avoidance.
Ground research
Underground research
“ ”
“ ”
About interview
Pain points
In order to find out pain points of miners in their daily work, an interview was made with five senior miners.
×
Comfortable
Anti-oil
Protection
Wearable
Dust-proof
Easy-clean
Waterproof
Practical
Portable
There is a lot of oil and grime underground, which can easily obstruct vision, so the equipment needs to be easy to clean.
Under high-intensity work conditions, miners need PPE that is straightforward and easy to use, simplifying their tasks. Additionally, it should be lightweight to minimize extra weight burden.
Hierarchy of needs research
Serious safety issues with driving
Blind area
Can only depends on intuition and luck.
4.
Poor wearing experience
Where to put my goggles?
1.
Wearing during non-working hours affects comfort and communication.
Lots of greasy dirt underground
Greasy dirt block vision
3.
Loud underground noise
Feel isolate
Feel noisy
2.
Over 40
Skilled
20 miners participated
with
and
Basic information
Aged
Miner
Security
“ ”
Causes research
miners said they had almost been in an accident, but avoided it because of their timely detection.
90%
Fatigue
Misjudgment
Working 8 hours per day, rest 1 day after 3 workday.
The eight hour continuous night shift makes it difficult for miners to concentrate and Irregular sleep patterns lead to fatigue. Security features must be enhanced due to long hours of work easily fatigue miners
Morning shift
Noon shift
Noon shift
Evening shift
Rest
Rest
Rest
Rest
Morning shift
3 days
3 days
3 days
3 days
3 days
8:00
8:00
16:00
24:00
1 days
1 days
1 days
1 days
Misjudged the turning area when the car turned due to the large size of the car.
Suddenly start the vehicle without the knowledge of the surrounding miners (rest, etc.).
16 miners in favor
12 miners in favor
15 miners in favor
04
Design strategy
target USER
Using experience
Safety
Working efficiency
Purchaser
Mine enterprise
Government
Miners' families
Industry 4.0
Reduce cost
Respond to the policy call
Reduce visual blind spot
Improve concentration
Reduce noise
Improve work efficiency
Find place to put the goggles
Easy to clean
Audible reminder
supervisor
Miner
Vehicle driver
Get off the vehicle
Get on the vehicle
Working miner
Improve vision of goggles
Modular
Active safety
Passive safety
Integrating active safety with passive safety systems based on comprehensive requirements from various stakeholders can improve using experience while enhancing safety performance.
IDEATION
Design feature
Provides low cost maintenance
Integrated product design
Improve product using experience
Provides linkage product functions
Eeliable
Stabilize
Technological sense
Reassuring and eye-catching colors
Color
Black and Orange
Finishing
Reassuring and eye-catching colors
Satin finish
Material
High strength, good toughness, easy to process molding
ABS plastic
05
Ideation
Deduce the basic structure and form according to the determined product function and form.
06
Prototype
PROTOTYPE
The frosted texture of the plastic can provide a reduced sense of wear and tear and improve confidence in use.
3D printing was used to make this prototype.
CMF
USER TEST
The test was conducted by having three test subjects of different body types wear the production to see if they all had good levels of comfort.
07
Outcome

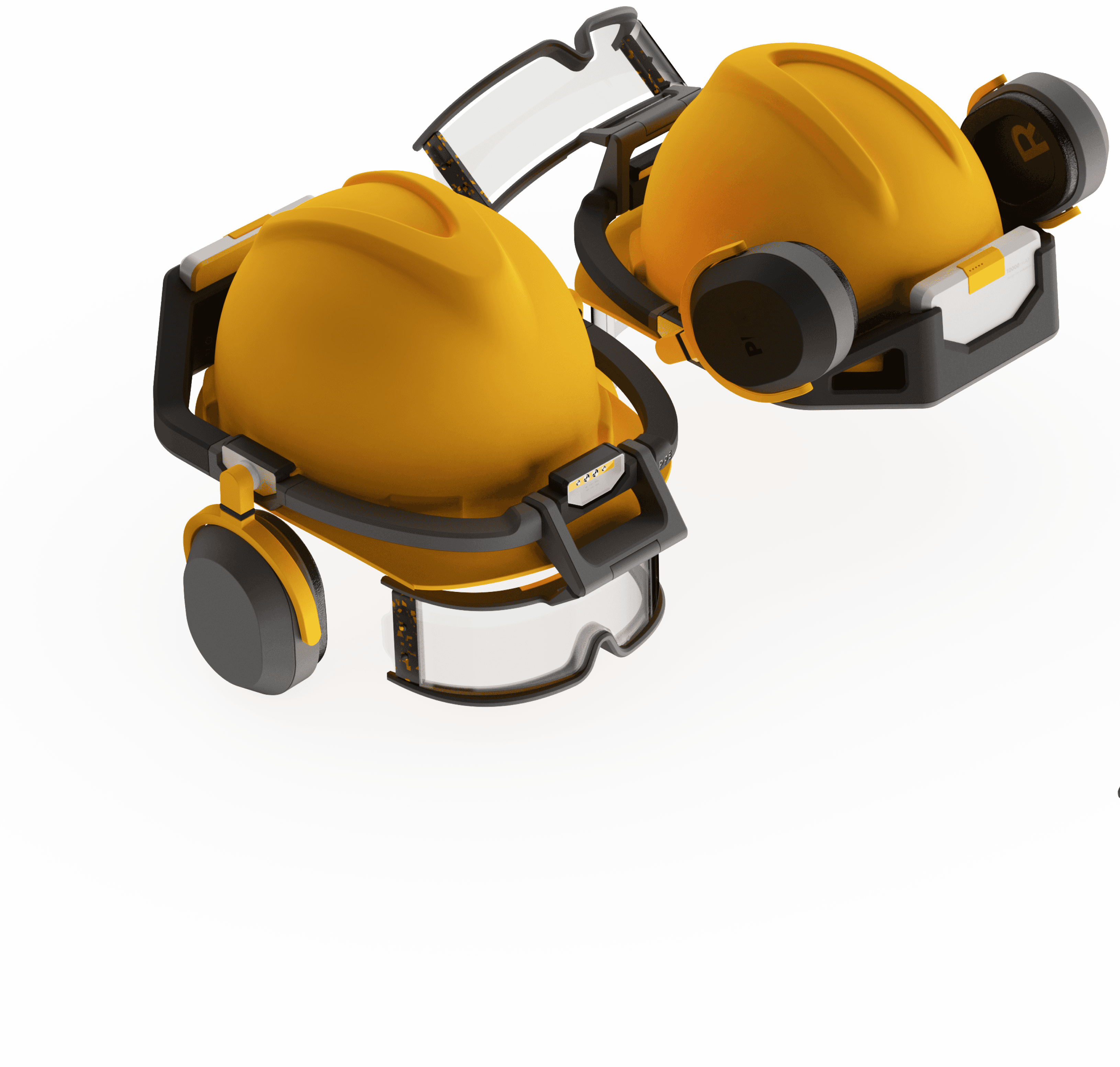

MODULAR DESIGN
Each component is modular design, can be disassembled and cleaned greasy dirty separately, and can be replaced after damage to reduce replacement costs.
There is a buckle to connect personal protective equipment and helmet.
Strips can be torn of to keep goggles clean when goggles getting greasy dirty.

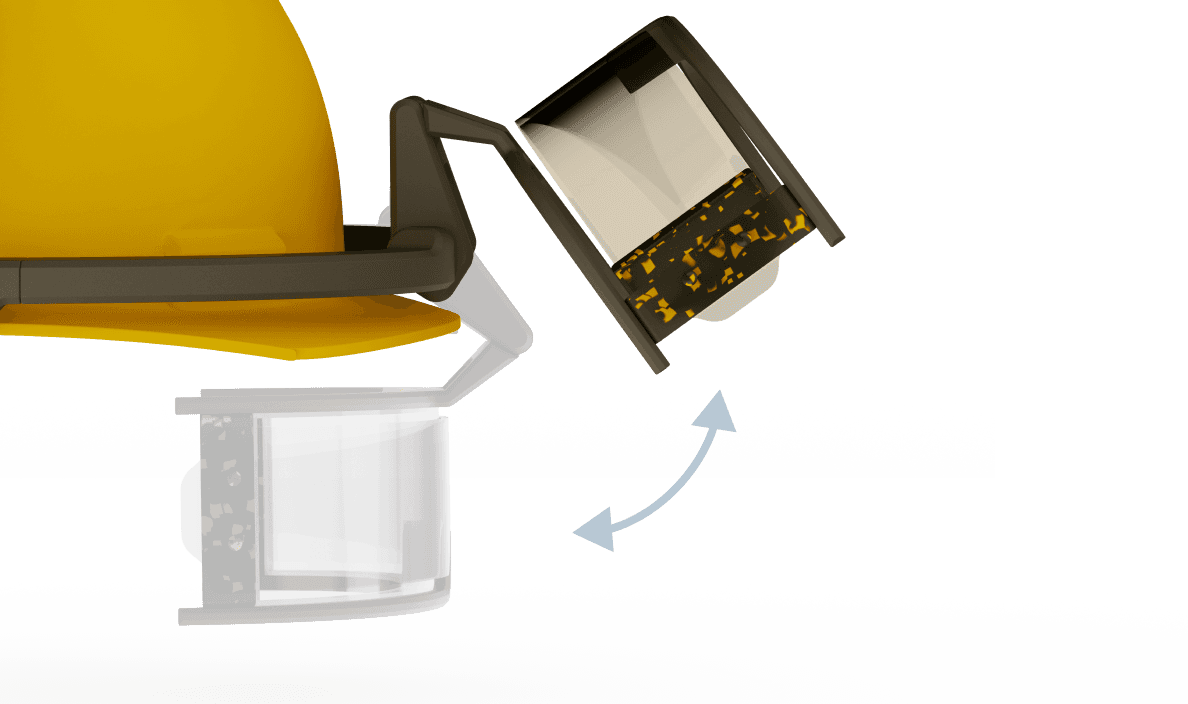

The foldable stand allows it to be lifted when goggles are not in use, reducing line of sight resistance.
BLIND AREA
Warning range
As the distance gets closer and closer, the sound and vibration will have different degrees of progression, when the distance reaches the stopping zone, the intensity is the strongest.
ATTENTION
DANGER!
Running
logic

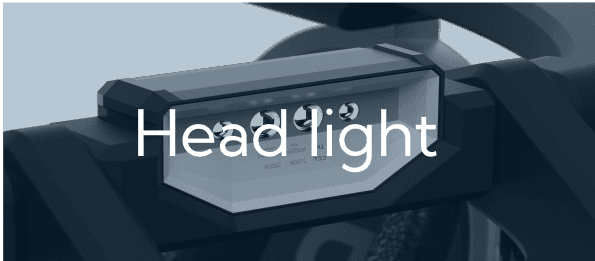

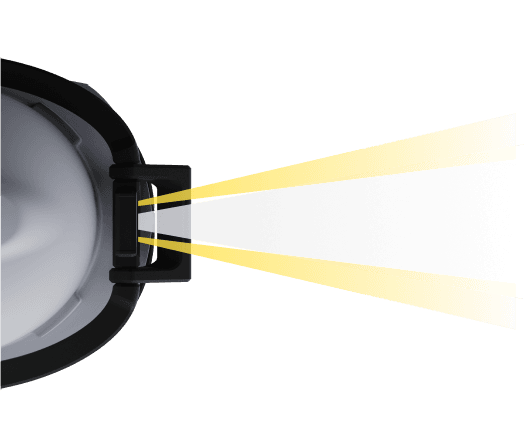

The additional warning light provides a reminder function on the basis of the continuous lighting of the white light.
A loudspeaker in the earmuffs alarms when a vehicle approaches.
A vibration motor in the earmuffs vibrates when a vehicle approaches, alerting miners by vibrating the skin.
Improve safety by reducing visual blind areas through positioning and prevent traffic accidents caused by blocked vision.
SAFETY
ATTENTION
DANGER!
